MPOS FX-400R

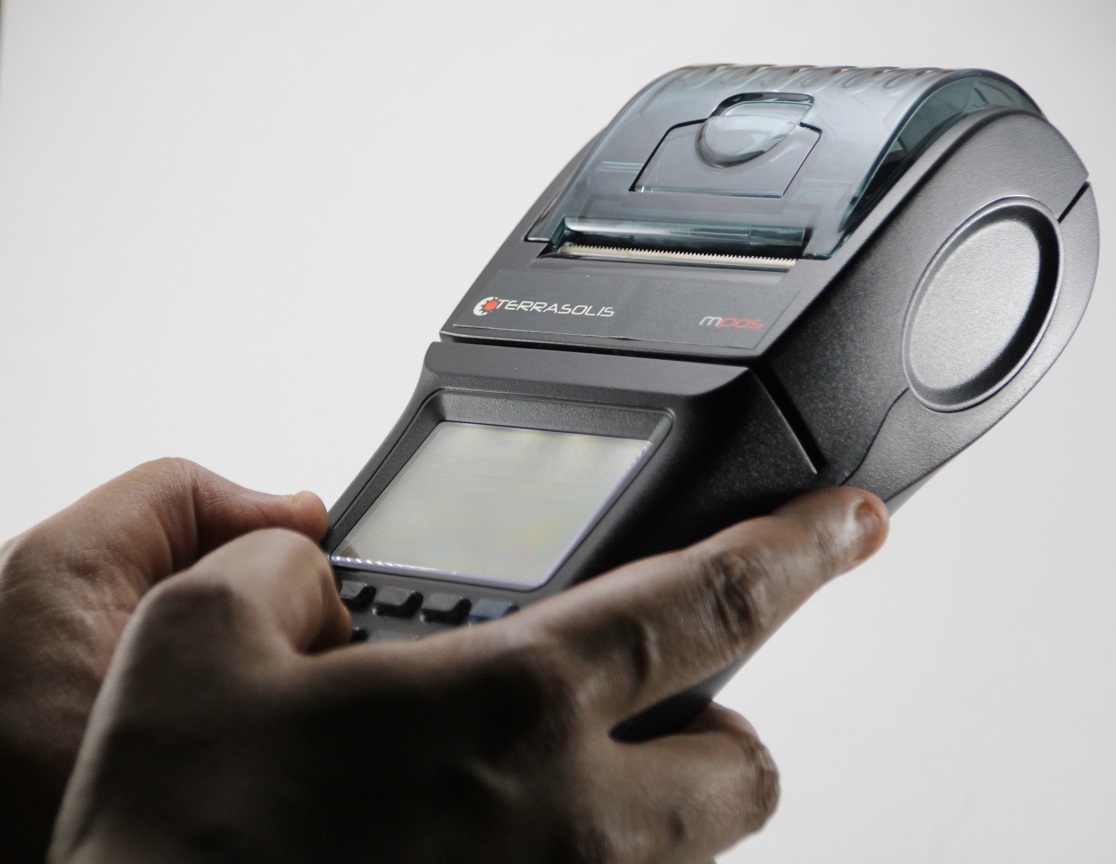

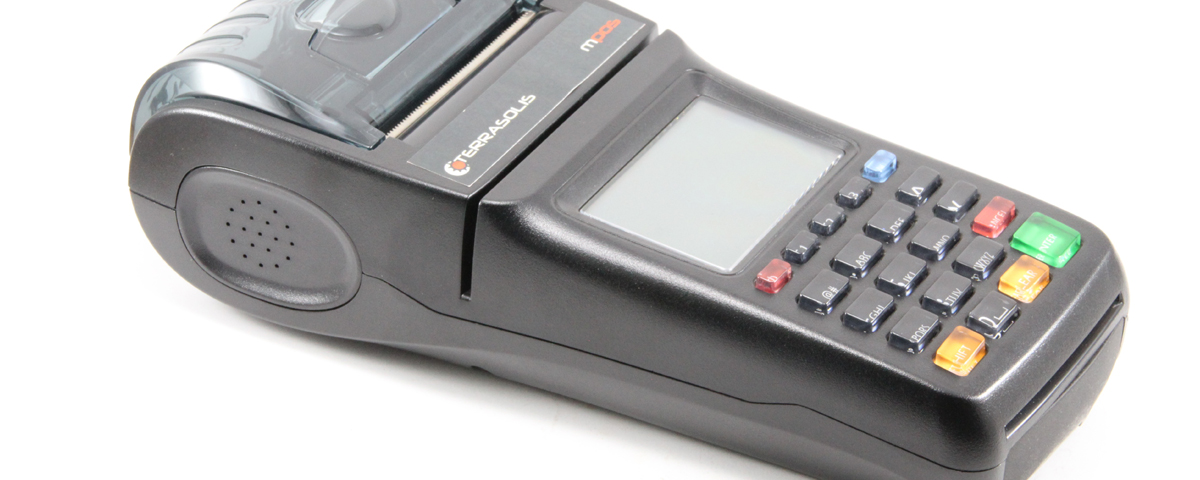

FX-400R is a handheld/desktop billing machine with application in restaurents, cafes, stores and any retail outlets. Powered by a rechargeable lithium-ion battery makes it free from power failures and messy cables making it completely free and versatile. The compact 2 inch thermal printer has fast printing capability and trouble free operation. The easy-to-use user interface consist of a large white backlit LCD and a robust 21 button keypad. At heart is a 32 bit ARM processor and has 32Mb storage. The quick and easy USB data trasfer makes it easy to instal and tranfer data.

Brochure

Features

  • 10000 Product storage (PLU)
  • 6000 Customer storage - Credit billing
  • 12000 Bill storage (Depends on no. of items in bill)
  • File import and export - Excel, CSV data formats
  • Credit billing feature with balance keeping
  • 7 Customizable headers and footers
  • Logo printing feature on invoice
  • Tax on bill feature - Single rate
  • Discount feature
  • Estimate creation and convertion to sales invoice
  • 24 different reports
  • Password protected
  • Free PC software for connectivity and reports
  • Drivers Compatible with Windows 7, 8, 8.1, 10

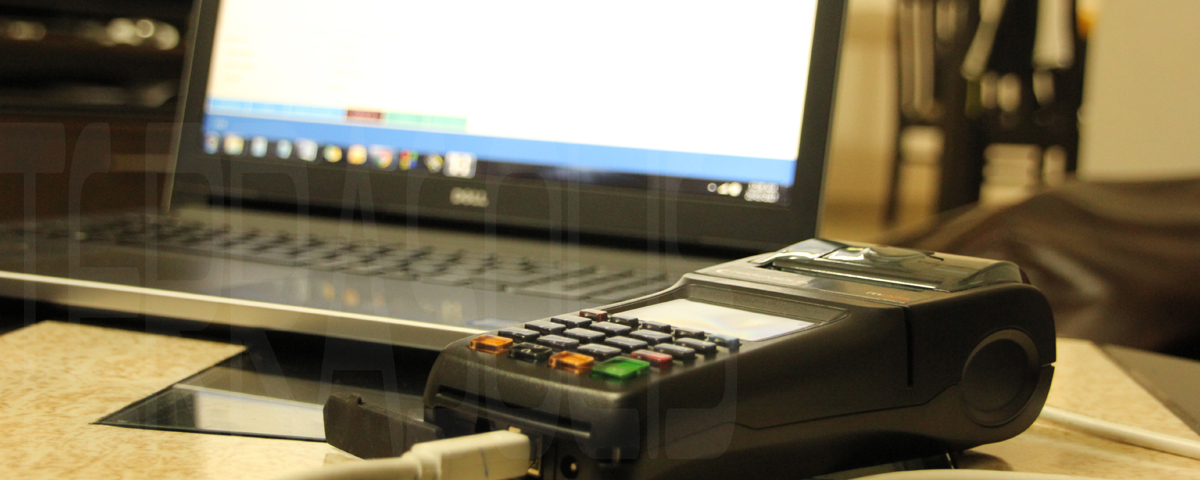

  • USB connectivity
  • 1 year warranty

Hardware Specification

  • Controller: 32-Bit ARM Cortex M0+ 48Mhz
  • Storage: 4 Mb NAND Flash
  • Real time clock: High accuracy Dedicated chip with Crystal
  • LCD Resolution: 160 x 105
  • LCD Backlight color: White
  • LCD Color: 4 grey scales
  • Printer: 2 inch thermal printer
  • Printer speed: 7 cm/s
  • Printer durability: 50KM
  • Battery: 3.7v 1-cell, 2000mAh Lithium polymer
  • Charge time: 3 hours
  • Charger specification: Input: 230v Output:9v 1A
  • Charge indication: Red LED
  • Keypad: 21 button Polycarb with inside printing
  • Power button: Dedicated, with full power downn
  • Free PC software for connectivity and reports
  • USB connectivity: 2.0 Port: Mini-B connector (Cable included)
  • Reset switch
  • Robust ABS and polycarb Body
  • Temperature, battery voltage monitoring
  • Weight : 450g

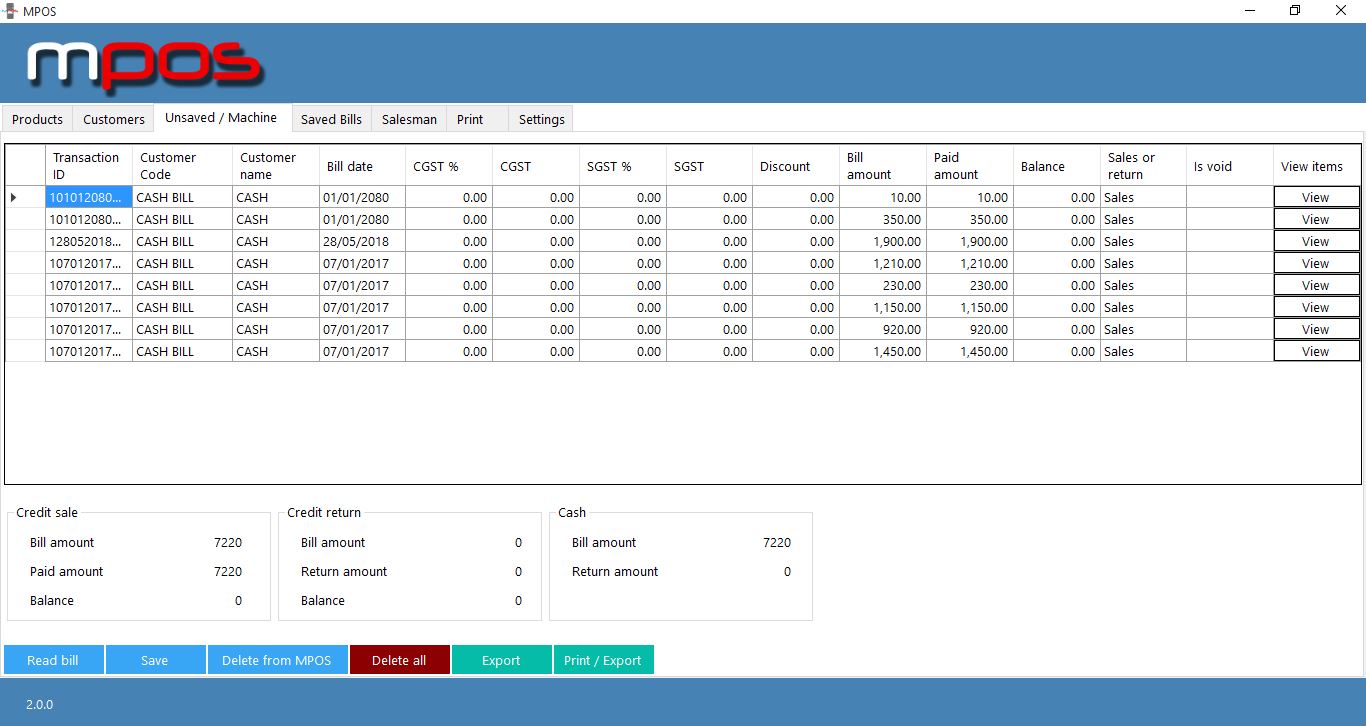

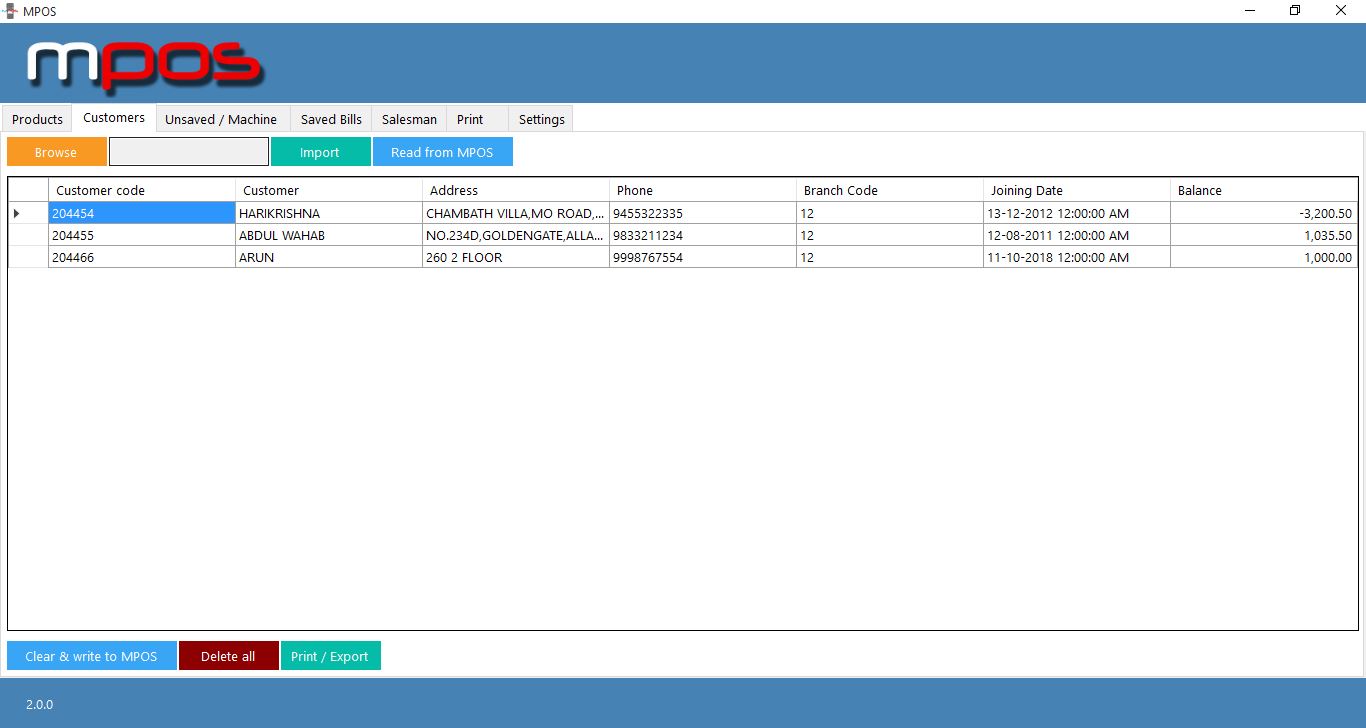

Software features

  • Runs on all windows 7 and above
  • Products import from Excel/CSV and write to MPOS
  • Customers import from Excel/CSV and write to MPOS
  • Read all bills in MPOS memory and save in database
  • Update customer balances with newly read bills
  • Set salesman and admin users and passwords
  • Set 5 header ann 2 footer in bill print
  • Set LOGO to print on invoice
  • Set tax name and rate
  • Sync date and time with PC
  • Set various billing and printing settings
  • Export all bills to Excel

Applications

FX-400R is a truely versatile product and the application can be anything of the users imagination, making it a success on online markets. It has been used from cafes, restaurants, cable tv billing, news paper billing, tea ditributors, textiles,gaming centers, internet cafes, school bus billing, recharge coupon distribution and so on.

Restaurants

Ideal for restaurants, cafes and food outlets. Instant billing with minimal key press. Why spent 5 times more on a PC based billing system when you have all the features right here.

Stores and retail outlets

Easy to use billing system for stores and small reatil outlets where space and formfactor is a concern. Compact yet powerful features make sure that you dont compromise on anything.

Credit billing

Credit billing feature makes it useful in stores with loyalty credit customers. The software link will keep the balance updated and keep accurate accounts.

Support Software.




FAQ

A few frequently asked questions answered

Warranty?

1 year manufacturer warranty which covers all manufacturing defects. All faults will be rectified and defectedparts will be replaced free of cost. Mishandling and damages will not be covered.

Videos available?

Yes, tutorial video links will be provided during purchases, that explain installation, operation and maintenance.

Box contents?

MPOS FX-400R billing machine with included battery, charger adaptor, USB cable, one thermal paper roll, installation links, warranty policy in a 9x6x3 inch corrugated box.

Software?

The PC software is free with MPOS and support windows 7 and above. You can load products, customers and settings and read the bills and save to database. You can export to excel. USB drivers install automatically in windows however we provide our own drivers.

Battery?

Time for full charge is 3 hours (approx). On one full charge the device can operate more than a working day. Depends on usage. Putting in standby results in extended life.

Service?

We only provide courier based service. If you raise a complaint, we will first try to resolve over phone. If not resolved we will schedule a courier pickup to pick up your device. The device will be resent to customer within 48 hours of received date and time.
